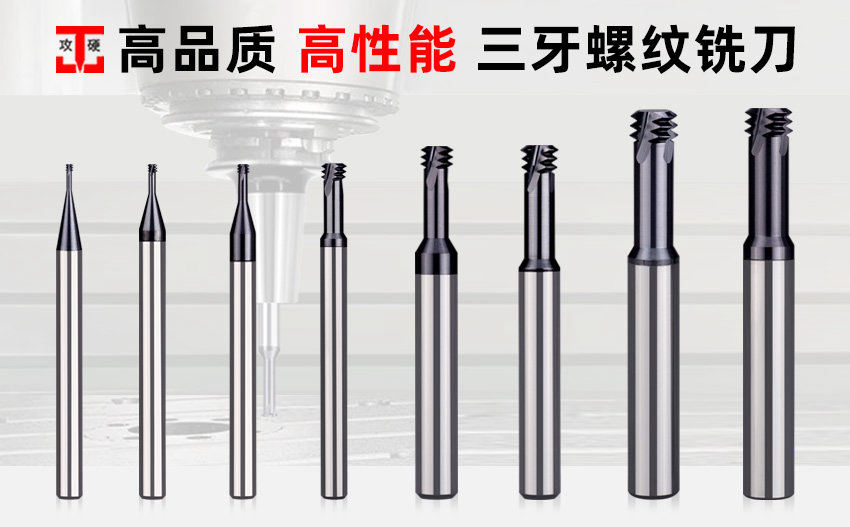

鎢鋼三牙螺紋銑刀
| 55度鎢鋼三牙螺紋銑刀產品信息 | |||
| 品牌 | 攻硬 | 材質 | 優質鎢鋼 |
| 加工材料 | 銅、鋁、鑄鐵、不銹鋼、合金鋼、工具鋼、調質鋼、鈦合金、模具鋼等55度以下材料 | ||
| 優勢特點 | 全磨制圓弧刃，刃口鋒利，高光潔度，耐磨性強 | ||
| 55度鎢鋼三牙螺紋銑刀規格參數表 | |||||||
 | |||||||

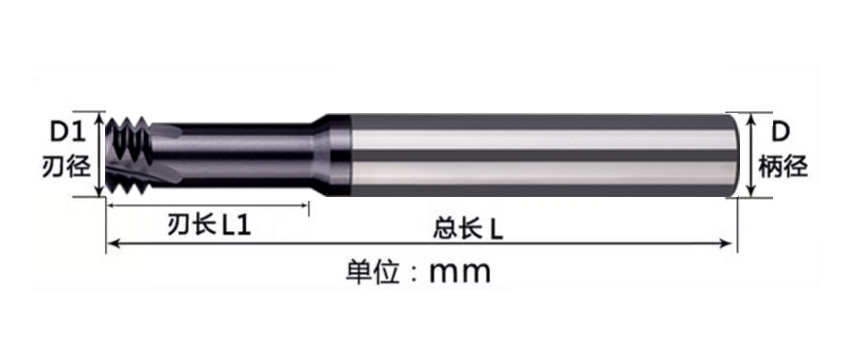

| 螺紋 | 牙距 | 刃徑 | 避空直徑 | 刃長 | 柄徑 | 總長 | 刃數 |
| M1.0 | 0.25 | 0.73 | 0.43 | 2.0 | 4 | 50 | 3 |
| M1.2 | 0.25 | 0.92 | 0.62 | 2.4 | 4 | 50 | 3 |
| M1.4 | 0.3 | 1.05 | 0.65 | 2.8 | 4 | 50 | 3 |
| M1.6 | 0.35 | 1.0 | 0.78 | 3.2 | 4 | 50 | 3 |
| M2.0 | 0.4 | 1.55 | 1.05 | 4.0 | 4 | 50 | 3 |
| M2.2 | 0.45 | 1.7 | 1.1 | 5.0 | 4 | 50 | 3 |
| M2.5 | 0.45 | 2.0 | 1.45 | 5.0 | 4 | 50 | 3 |
| M3.0 | 0.5 | 2.4 | 1.8 | 6.0 | 4 | 50 | 3 |
| M3.5 | 0.6 | 2.75 | 2.0 | 8.0 | 4 | 50 | 3 |
| M4.0 | 0.7 | 3.15 | 2.3 | 8.0 | 4 | 50 | 3 |
| M4.5 | 0.75 | 3.5 | 2.55 | 9.0 | 4 | 50 | 3 |
| M5.0 | 0.8 | 4.0 | 3.0 | 10 | 4 | 50 | 3 |
| M6.0 | 1.0 | 4.8 | 3.6 | 12 | 6.0 | 50 | 3 |
| M8.0 | 1.0 | 6.0 | 4.5 | 16 | 6.0 | 50 | 4 |
| M8.0 | 1.25 | 6.0 | 4.5 | 16 | 6.0 | 50 | 4 |
| M10 | 1.5 | 8.0 | 6.2 | 20 | 8.0 | 60 | 4 |
| M12 | 1.75 | 10 | 7.8 | 24 | 10 | 75 | 4 |
| M14 | 2.0 | 10 | 7.5 | 37 | 10 | 75 | 4 |
| M20 | 2.5 | 16 | 12.3 | 40 | 16 | 100 | 6 |
| M24 | 3.0 | 16 | 12 | 48 | 16 | 100 | 6 |
